Fuel Pump 300L/H

Technical Data:

• Operating Voltage:12V
• Min Voltage:8V
• Max Voltage:18V
• Operating Pressure:75PSI(5.0Bar)
• PRV Activation0-130PSI)
• Flow rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
• Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V
• Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V
• Current:15A under 75PSI/12V
• High Temperature Reduction: 30 LPH(8 GPH)
• Operating temperature range: -20 - 90 -68 °F-194 °F)
• Storage temperature range: -40- 70 (-104 °F-158 °F)
• Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines& 650HP for Turbo/Supercharged engines

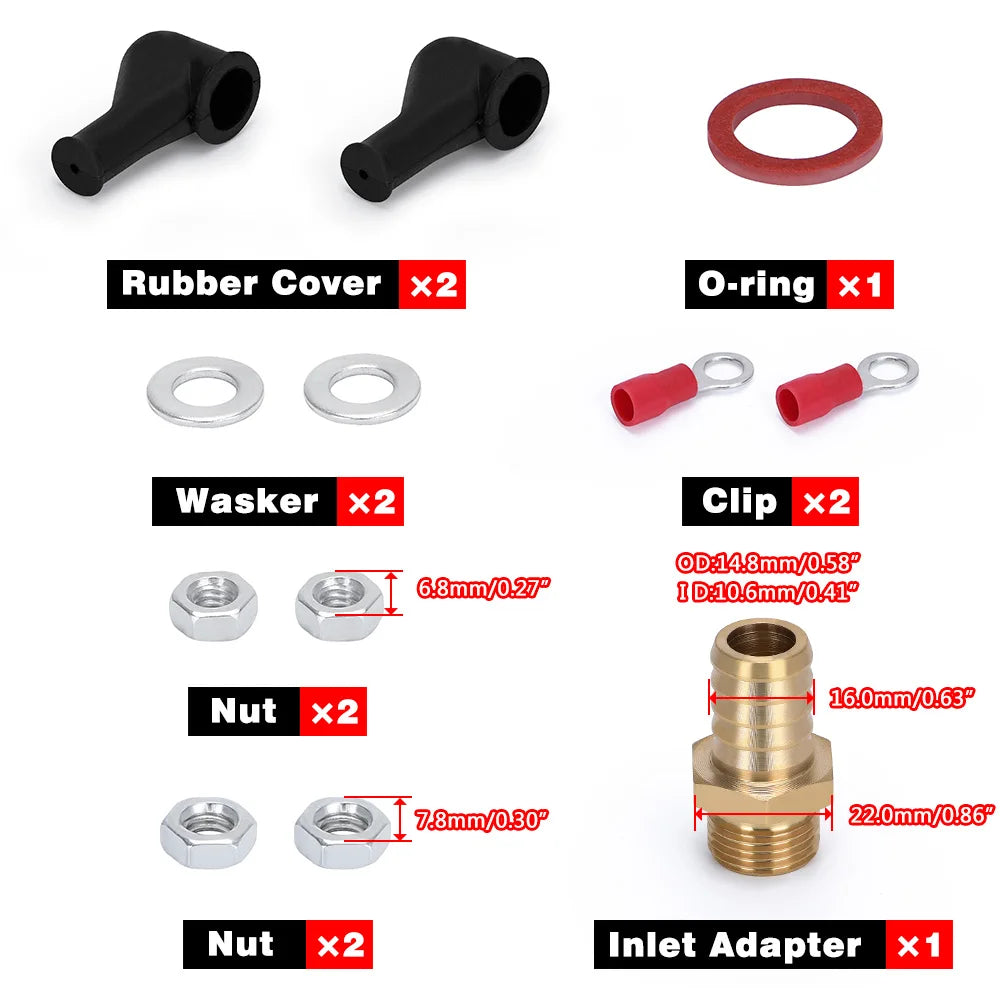

Package Included:

• 1 x Fuel Pump .
• 1x Internal Fuel Filter (already fitted ).
• 2x Rubber connection covers .
• 2x Clips .
• 2x Nuts .
• 2x Washers .
• 1x Inlet Adapter .(100% Brand New Never Used Or Installed
